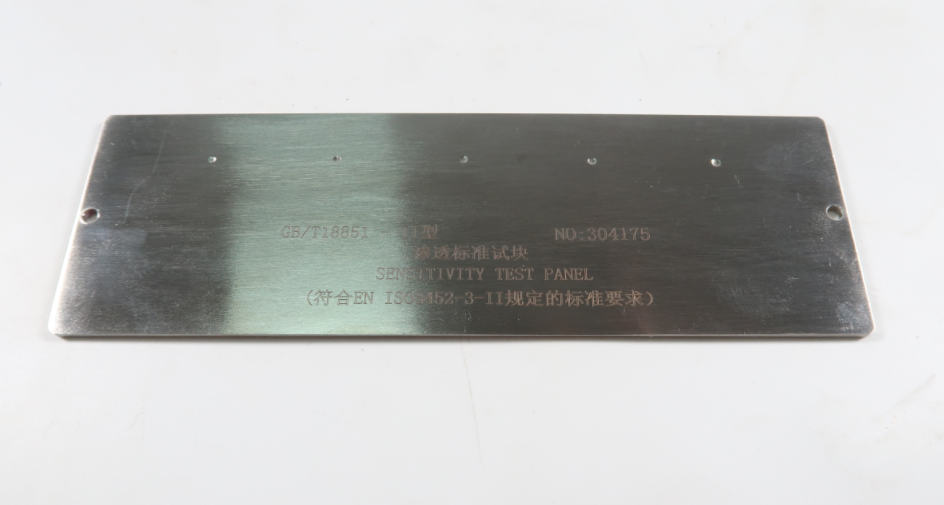

TMTECK Type II Reference Test Block Penetrant Test Block
Test standard: ISO 3452-3:1998（E），JIS Z 2343-3:2001，ASME
Item Type: Type II Reference Test Block
|
SPECIFICATION: |
All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. |
|
MATERIAL: |
Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B |
|
Depth |
100µm |
|
Width(target value) |
0.5µm |
|
|
Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled.
|
|
TRACEABLITY: |
Calibration standards used are traceable to international standards |
CERTIFICATION THAT THE SUPPLIES /SERVICES DETAILED HEREON HAVE BEEN INSPECTED AND TESTED IN ACCORDANCE WITH THE CONDITIONS AND REQUIREMENTS OF THE CONTACT OR PURCHASE ORDER AND UNLESS OTHERWISE NOTED BELOW CONFORM IN ALL RESPECTS TO THE SPECIFICATION(S) , DRAWING(S), RELEVANT HERETO.
