TMTECK UV LED Inspection Headlight TMUV40T & TMUV100T

Short Description:

Product Detail

Product Tags

Designed to release the test engineers’ hands.

TMTECK headlights are small-sized, lightweight and designed to release the test engineer’s hands during inspection. It is compliant with ASTM UV-A intensity and wavelength specifications for LPT and MPT. It is widely used in nondestructive testing (NDT), forensic inspection, quality control, fluorescent leak detection, industrial inspection, and so on.

Features

TMUV40T: 1.5 in (4cm) diameter coverage area at 15 inches (38cm), with a max UV

intensity of 40,000μW/cm² and min UV intensity of 10,000μW/cm².

TMUV100T: 4 in (10cm) diameter coverage area at 15 inches (38cm), with a max UV

intensity of 15,000μW/cm² and min UV intensity of 1,000μW/cm².

Instant-on operation; lamp reaches full intensity immediately!

Every lamp is mounted with an antioxidant black light filter glass.

The headlights can be adjusted in different angles.

It is small size, light weight and cordless. Use it anywhere.

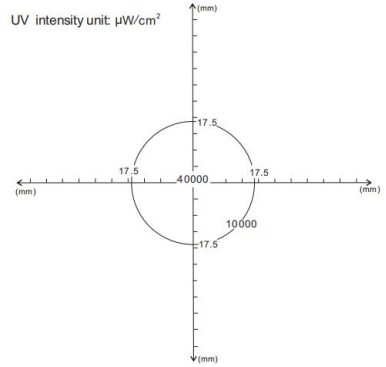

TMUV40T UV Light Beam Distribution at 15 inches (38cm)

Measured By: Spectroline R AccuPRO™ XP-2000 radiometer

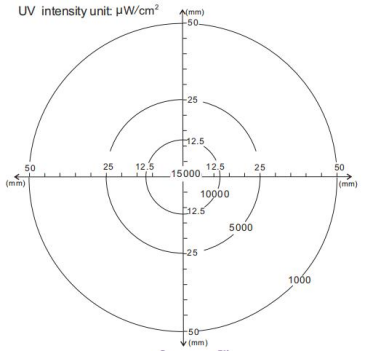

TMUV100T UV Light Beam Distribution at 15 inches (38cm)

Measured By: Spectroline R AccuPRO™ XP-2000 radiometer

Specifications

Model No.	TMUV40T	TMUV100T
UV Intensity at 15 in (38cm)	40,000 µW/cm²(max)	15,000 µW/cm²(max)
UV-A Coverage Area at 15 in (38cm)	1.5 in (4 cm) Diameter (min 10,000µW/cm²)	4 in (10 cm) Diameter (min 1,000µW/cm²)
Visible Light	1.2 foot-candles (13 lux)	0.4 foot-candles (4.3 lux)
Lamp Style	Headlight
Light Source	1 UV LED
Wavelength	365±5nm
Filter Glass	Built-in Antioxidant Blak Light Filters
IP Grade	IP65 (Dust and Water Jetting Proof)
Power Consumption	<3W
Power Supply	One Rechargeable 3.7V 3000mAh Li-ion Battery
Running Time	Approximately 5 hours
Charge Time	Approximately 4 hours
Battery Charger	AC 100-240V; DC output 4.2V 1A
Lamp Head Diameter	48mm
Lamp Length	59mm
Weight (With Battery)	238g
