TME390 Electromagnetic Acoustic Thickness Gauge

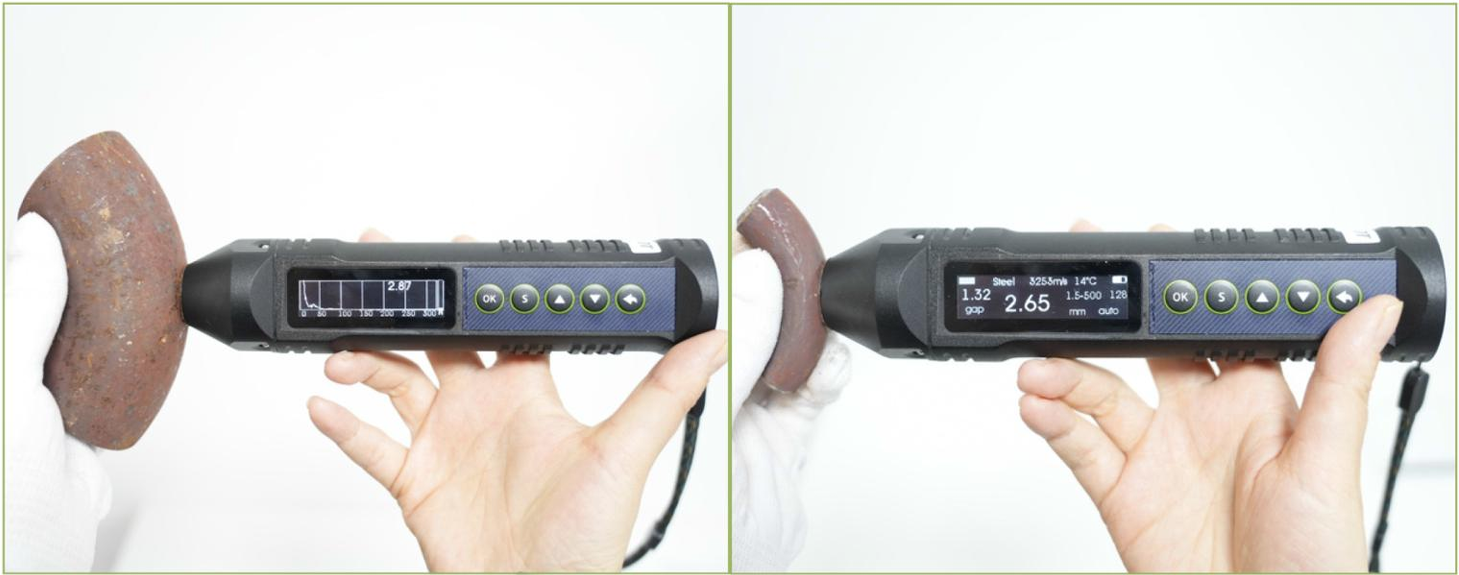

Product Introduction

The TME390 electromagnetic Acustic thickness gauge is specifically designed for measuringproducts made of steel, aluminum, and other metals, such as steel pipes, rolled plates, and barsIt operates without the need for pre-cleaning the surface or using couplant, and can penetratecoatings up to 4mm thick. This device can also measure the thickness of non-conductive coatingson metals.

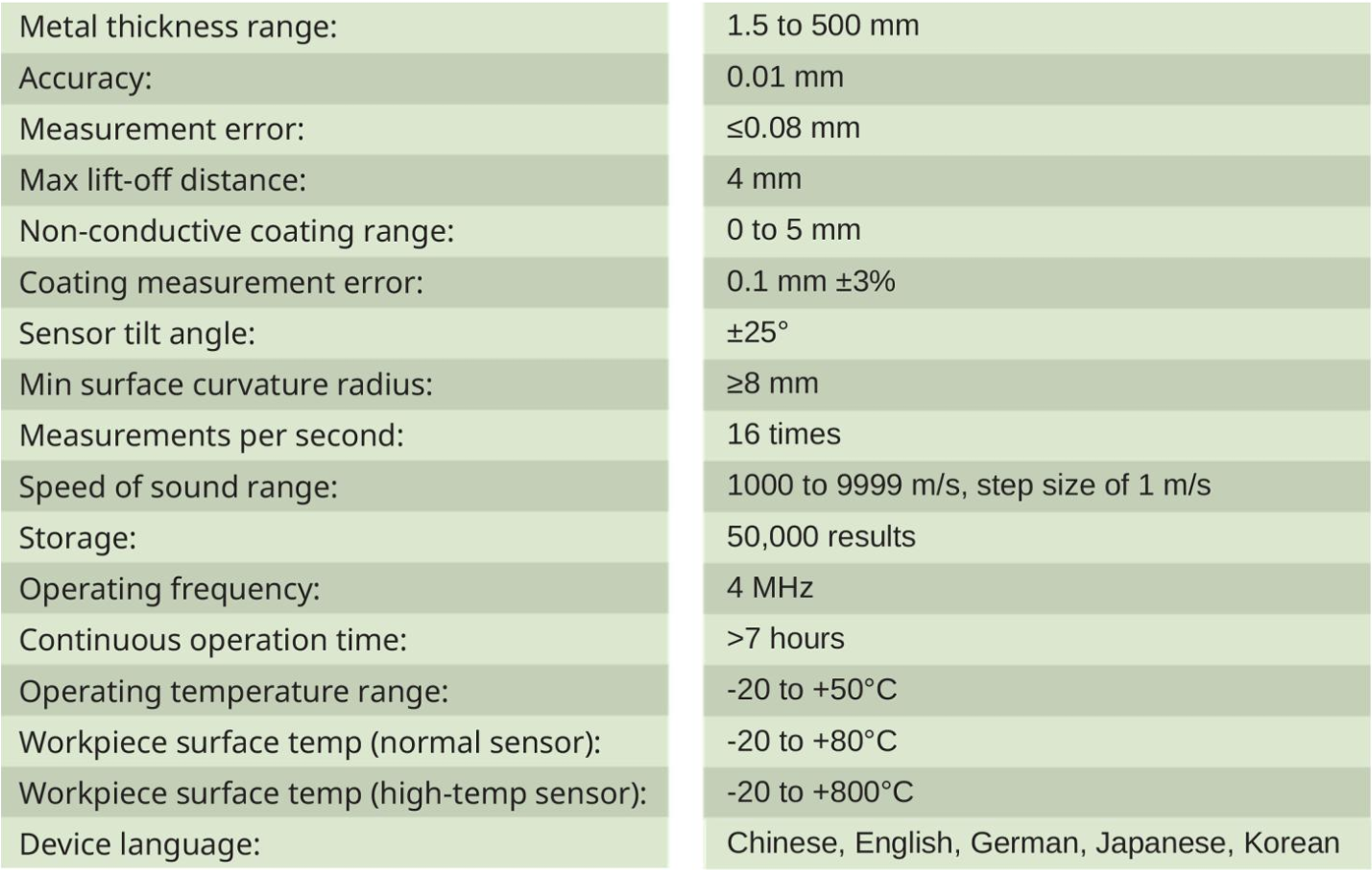

Technical Specifications

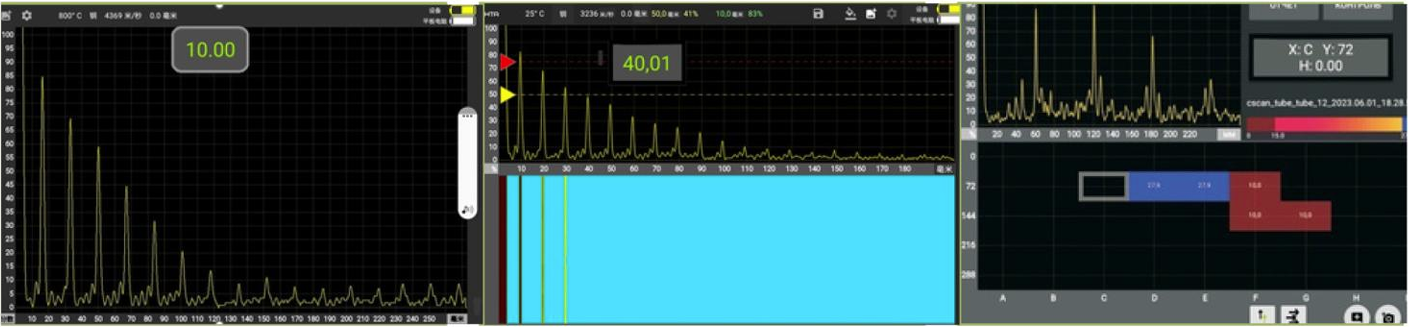

A/B/C-Scan for Comprehensive Inspection

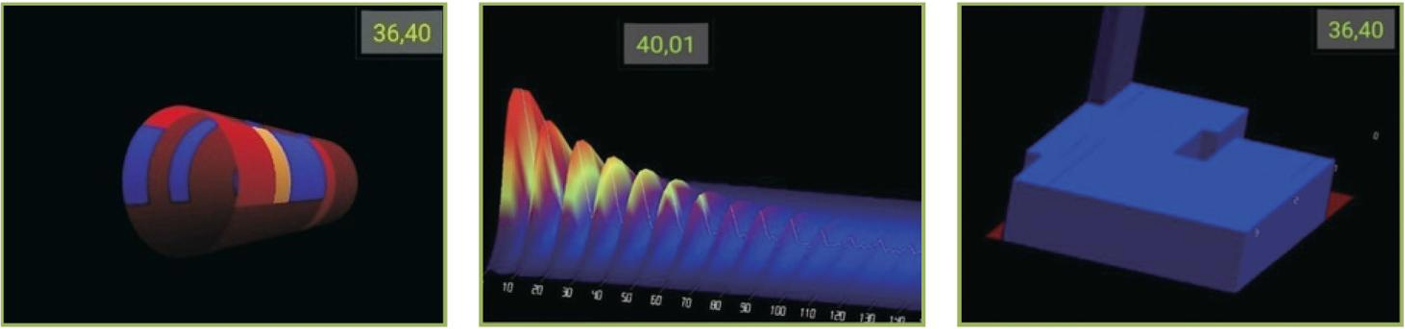

3D Mode for Enhanced Visualization
