TMHB-3000DX Digital Brinell hardness tester

Product Detail

1.Main features:

Adopts electronic automatically add load, with high accuracy sensor, have special closed-loop control system , automatic compensation for each shift

Eyepiece structure with digital encoder, measure D1, D2 value, LCD displays hardness value and D1, D2 value directly

Can be calibrated according to standard hardness block or length scale.

The test force can be modified automatically by standard dynamometer.

The hardness values of rockwell and vickers can be converted.

All data is stored in EXCEL format on U disk, or can choose built-in printer, RS232 is optional.

2.Technical specification

Model	TMHB-3000DX
Brinell scale	HBW2.5/62.5、HBW2.5/187.5、HBW5/62.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/250、HBW10/500、HBW10/1000、 HBW10/1500、HBW10/3000
Test force（Kgf）	62.5kgf(612.9N)、100kgf(980.7N)、125kgf(1226N)、187.5kgf(1839N)、250kgf(2452N)、500kgf(4903N)、750kgf(7355N) 1000kgf(9807N)、1500kgf(14710N)、3000kgf(29420N)
Carried standard	BSEN 6506, ISO 6506, ASTM E10, GB/T231
Test force accuracy	62.5～250kgf≤1% 500～3000kgf≤0.5%
Measuring device resolution	0.1um
Hardness value resolution	0.1HBW
Dwell time	0～99S
Data output	LCD display
Data storage	All data is stored in EXCEL format on U disk, or can choose built-in printer
Max. Height of specimen	200mm
Distance of indenter to outer wall	155mm
Dimension	550×210×800mm
Weight	110kg
Power supply	AC220+5%,50～60Hz

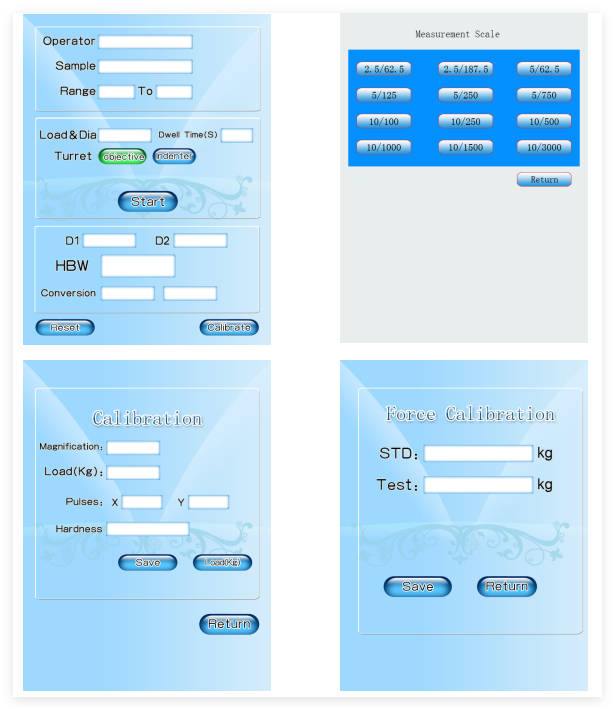

3. Operation interface

4. Standard Accessories：

Item	Quantity	Item	Quantity
Eyepiece	1	Large, Medium, “V” shaped Testing Table	Each 1
Diameter 2.5、5、10mm Hard Alloy Steel Ball Indenter	Each 1	Standard block（HBW10/3000, HBW10/1000,HBW2.5/187.5）	Each 1
U disk、 touch pen	1	Dust bag	1
Power cable	1	Fuse 2A	2
Certificate, warranty card	1	Manual	1
