Model TMV210 & TMV280 Vibration Meter
Features:
•Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
•Compact size, small weight, easy handling
•Prompt testing of vibration on the workshop machines
•For quick checking of unbalance misalignment, bearings and gears
•Guard against mechanical malfunction
•Holding tested value for 40 seconds
•Automatic switch off after 40 seconds
•TMV210 is used specially for velocity testing
•TMV280 is used for acceleration, velocity and displacement testing
Technical Specifications:
|
Model |
TMV210 |
TMV280 |
|
Parameter |
RMS of vibration velocity (mm/s) |
Acceleration, Velocity, Displacement |
|
Testing range |
Velocity: 0.1mm/s~ 199.9mm/s |
Acceleration:0.1m/s2-199.9m/s2(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak) |
|
Frequency range |
Velocity:10Hz ~ 1kHz |
Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz |
|
Accuracy |
±5% ± 2digits |
|
|
Display |
3 1/2 digits LCD |
|
|
Power supply |
two button batteries(LR44 or SR44) |
|
|
Battery capacity |
Approx. 5 hours working continuously |
|
|
Operating temperature |
0℃ ~ 40℃ |
|
|
Humidity |
<85% |
|
|
Dimension |
150mm×22mm×16mm |
|

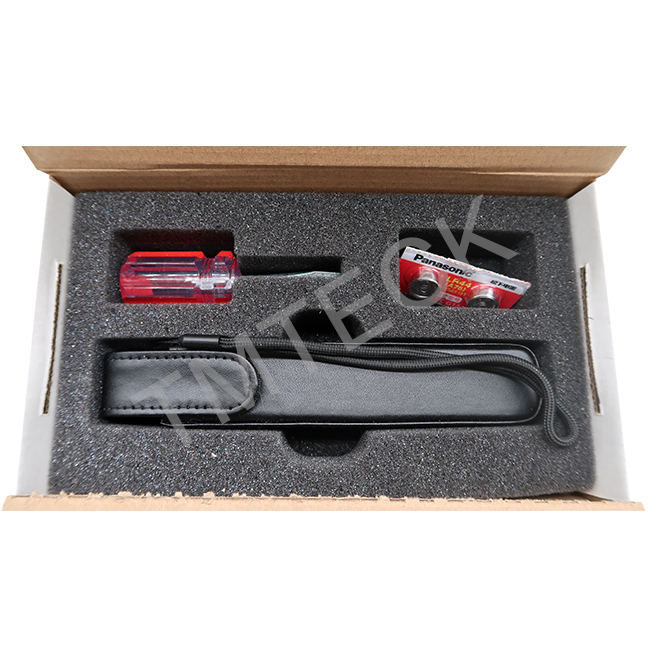

Configuration:
| NO. | Item | Quantity | |
|
Standard Configuration |
1 | Main uni. | 1 |
| 2 | Screwdriver | 1 | |
| 3 | Batteries SR44\LR44 1.5V | 2 | |
| 4 | Box | 1 | |
| 5 | Document | 1(set) |
