UV LED Inspection Flashlight TMUV40S & TMUV100N
Feature a powerful UV-A (365 nm) LED light source coupled with a rugged anodized aluminum lamp body. Powered by one rechargeable lithium-ion battery with an extra battery included with the lamp. Each provides 2.5 hours of continuous inspection between charges. It is compliant with ASTM UV-A intensity and wavelength specifications for LPT and MPT. It is widely used in nondestructive testing(NDT), forensic inspection, quality control, fluorescent leak detection, industrial inspection, and so on.
Features
TMUV40S: 1.5 in (4cm) diameter coverage area at 15 inches (38cm), with a max UV intensity of 40,000 μW/cm² and min UV intensity of 10,000 μW/cm² .
TMUV100N: 4 in ( 10cm) diameter coverage area at 15 inches (38cm), with a max UV intensity of 15,000 μW/cm² and min UV intensity of 1,000 μW/cm² .
Instant-on operation; lamp reaches full intensity immediately! Every lamp is mounted with an antioxidant black light filter glass.
Anodized aluminum lamp body minimizes corrosion and stands up to years of heavy use. It is small size, light weight and cordless. Use it anywhere.

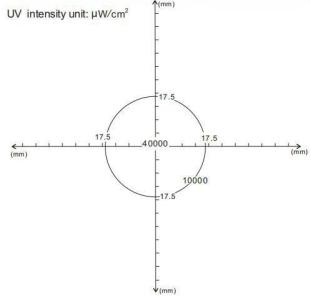

TMUV40S UV Light Beam Distribution at 15 inches (38cm)
Measured By: Spectroline ○RAccuPRO™ XP-2000 radiometer

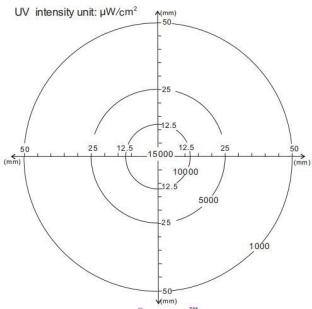

TMUV100N UV Light Beam Distribution at 15 inches (38cm)
Measured By: Spectroline ○RAccuPRO™ XP-2000 radiometer
Specifications
| Model No. | TMUV40S | TMUV100N |
| UV Intensity at 15 in
(38cm) |
40,000 µW/cm² (max) | 15,000 µW/cm² (max) |
| UV-A Coverage Area at 15 in
(38cm) |
1.5 in (4 cm) Diameter
(min 10,000µW/cm² ) |
4 in ( 10 cm) Diameter
(min 1,000µW/cm² ) |
| Visible Light | 1.2 foot-candles ( 13 lux) | 0.4 foot-candles (4.3 lux) |
| Lamp Style | Cordless flashlight | |
| Light Source | 1 UV LED | |
| Wavelength | 365nm | |
| Filter Glass | Built-in Antioxidant Black Light Filters | |
| IP Grade | IP65 (Dust and Water Jetting Proof) | |
| Power Consumption | <3W | |
| Power Supply | One Rechargeable 3.7V 3000mAh Li-ion Battery | |
| Running Time | Approximately 2.5 hours | |
| Charge Time | Approximately 4 hours | |
| Battery Charger | AC 100-240V; DC output 4.2V 1A | |
| Lamp Handle Diameter | 24mm | |
| Lamp Head Diameter | 46mm | |
| Lamp Length | 158mm | |
| Weight (With Battery) | 235g | |
