TS13 Near wall probe

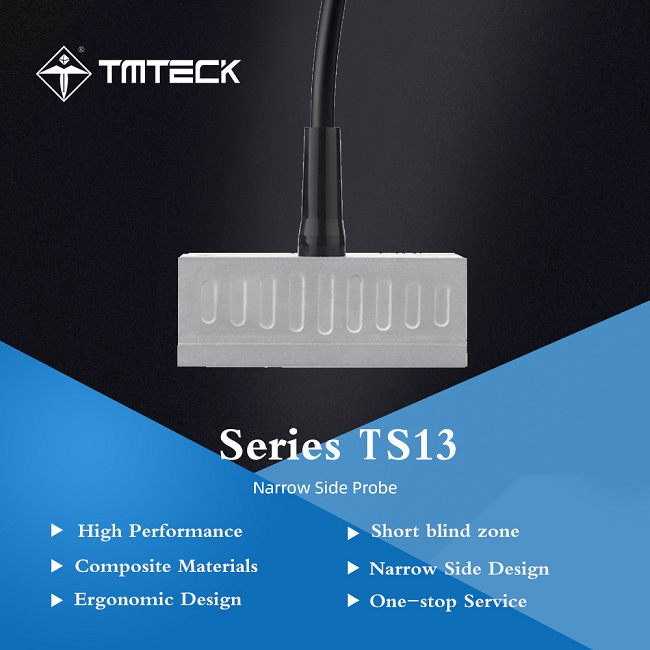

Near-wall narrow-shell probe: small width ensures a easy near-surface resolution.
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Near-wall probes have shorter dead zones at both ends
3.Widely used in composite channel inspection
4.Can be used for C-scan detection of composites (delamination, debonding and porosity)
5.Automatic and manual scanning
Applications
1.Composite plate inspection
2.Immersion scanning area coverage
3.Plates, billets and bars
4.Disks, axles and shafts
Specification
|
Probe |
Model |
Compatible Model |
Element |
Freq (MHz) |
E-Nos |
Pitch |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
|
TS13/NW1 |
1L32-2.0×7 |
1L32-64x7 |
Linear |
1 |
32 |
2.00 |
64.0 |
7.0 |
66x19x25 (mm) (in) |
|
2.25L64-1.0×7 |
2.25L64-64x7 |
Linear |
2.25 |
64 |
1.00 |
64.0 |
7.0 |
||
|
3.5L64-1.0×7 |
3.5L64-64x7 |
Linear |
3.5 |
64 |
1.00 |
64.0 |
7.0 |
||
|
5L64-1.0×7 |
5L64-64x7 |
Linear |
5 |
64 |
1.00 |
64.0 |
7.0 |
||
|
7.5L64-1.0×7 |
7.5L64-64x7 |
Linear |
7.5 |
64 |
1.00 |
64.0 |
7.0 |
||
|
10L64-1.0×7 |
10L64-64x7 |
Linear |
10 |
64 |
1.00 |
64.0 |
7.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Model Number:1L32-2.0×7-TS13/1L32-64x7-NW1
Element:32
Element Shape:linear
Size:LxWxH 66x19x25(mm) 2.60×0.75×0.98(in)
Application:Composite plate inspection
Warranty:12 Months
Case:Stainless steel
Customization:yes
Type:phased array probe
Color:Silver
MOQ:1
