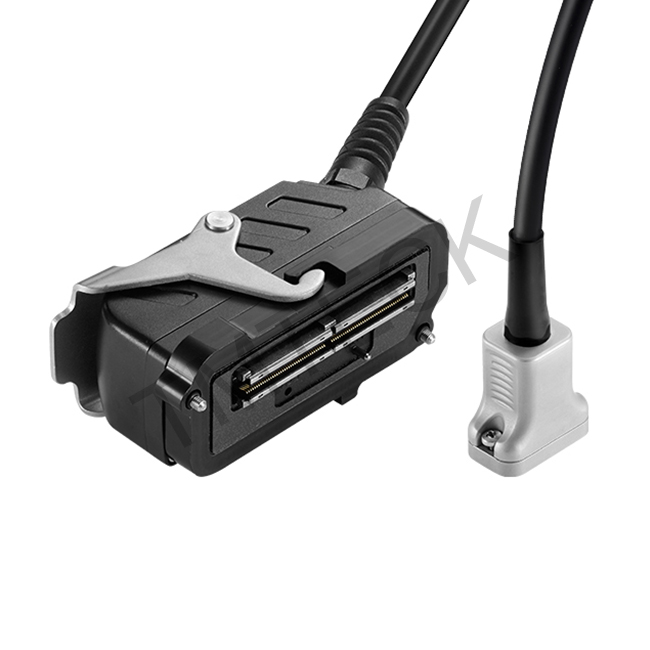

TS10 2D Matrix Array Probe
 |
 |
 |
 |
2D Matrix Array Probe: 3D spatial focusing, could use for immersion detection
Advantages
1.High compatibility, can be compatible with most phased array flaw detectors.
2.Suitable for soft and thick attenuating materials
3.Can be used for 3D imaging
4.Lightweight and flexible, easy to carry, easy to measure
5.High energy concentration and high signal to noise ratio
6.Widely used for glue testing
Specification
|
Probe |
Model |
Element |
Freq (MHz) |
E-Nos |
Pitch |
Active (mm) |
Elev. (mm) |
Size(LxWxH) |
|
TS10 |
5M8x8-1.5x1.5 |
2D Matrix |
5 |
64 |
1.50 |
12.0 |
12.0 |
31x18x34 (mm) 1.22x0.71x1.34 (in) |
|
7.5M8x8-1.5x1.5 |
2D Matrix |
7.5 |
64 |
1.50 |
12.0 |
12.0 |
||
|
10M8x8-1.2x1.2 |
2D Matrix |
10 |
64 |
1.25 |
9.6 |
9.6 |
||
|
15M8x8-1.2x1.2 |
2D Matrix |
15 |
64 |
1.25 |
9.6 |
9.6 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.
Quick Details
Place of Origin:Beijing, China
Model Number:5M8x8-1.5x1.5-TS10
Element:64
Element Shape:2D Matrix
Size:LxWxH 31x18x34(mm)1.22x0.71x1.34(in)
