TMLC-A1 Floor Thickness Tester
Usage Overview
TMLC-A1floor thickness tester is a portable instrument suitable for testing the thickness of concrete or other non-magnetic media by non-destructive testing methods.When in use,the transmitting probe and the receiving probe are placed on the two opposite test surfaces of the floor to transmit and receive electromagnetic signals respectively.The instrument tests the floor thickness value according to the received signal strength.
Applicable Standards
●GB50204-2015 ”Concrete Structure Engineering Construction Quality Acceptance Code”
●JJF 1224-2009″Calibration Specification for Steel Bar Cover and Floor Slab Thickness Measuring Instruments”
Features
※Wireless cloud transmission function(optional);
※Adopt triple-proof shell design,waterproof,dustproof and shockproof;
※The probe and the main unit are designed separately,which is convenient for operators to measure and use on site;
※Store floor slab thickness measurements by component;
※Easy to use,with complete measurement,storage and analysis functions;
※The stored data is transferred to the computer via the USB interface.
※Use Windows software to analyze data and generate test reports.
※Free switching between Chinese and English interfaces makes it more convenient and faster for foreign customers to use.
Technical Parameters
|
Host parameters |
Screen size:5 inchesLCD resolution:160×128 Volume:195×140×45mm
Weight:0.8kg |
| Host shell | Waterproof,dustproof,shockproof |
| Thickness test range | 40～820mm |
|
Test accuracy |
40～500mm:±1mm 501～600mm:±2mm 601~700mm:±4mm 701~800mm:±8mm |
| Data storage capacity | 200 components or 30,000 measuring points |
| Data transmission method | USBTransmission,wireless cloud transmission (optional) |
| Power supply | Both the host and the transmitting probe have built-in lithium batteries |
| Working environment requirements | Temperature:-10℃~40℃Humidity:<90%RH
No strong alternating electromagnetic field Avoid prolonged exposure to direct sunlight |
| Packing Specifications | Material:Engineering plastic Volume:480×165×400mmWeight:5.5kg |

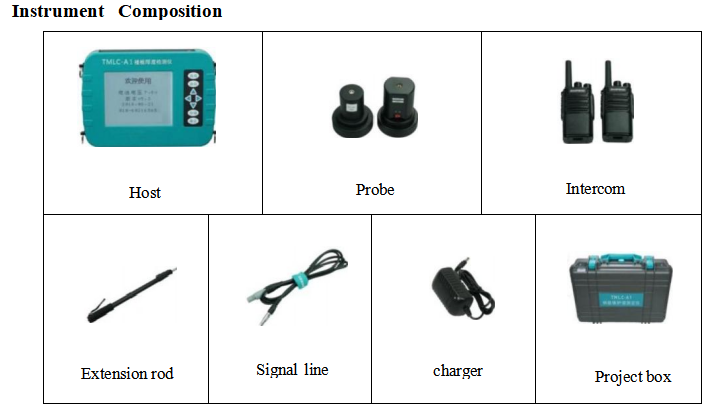

Product Configuration
| Serial | TMLC-A1Floor Thickness Tester Item List | Quantity |
| 1 | Project Box | 1 |
| 2 | Host | 1 |
| 3 | Intercom | 2 |
| 4 | Walkie-talkie charger | 2 |
| 5 | Receiving probe | 1 |
| 6 | Probe signal line | 1 |
| 7 | Transmitter Probe | 1 |
| 8 | Transmitter probe extension rod | 1 |
| 9 | Host/Transmitter probe charger | 1 |
| 10 | USBTransmission Line | 1 |
| 11 | Backpack straps | 1 |
| 12 | Product certificate,warranty card,packing list | 1set |
| 13 | Supporting CD | 1 |
| 14 | Operation Guide | 1 |
