TMHV-5MDX/TMHV-10MDX/TMHV-30MDX/TMHV-50MDX Advanced automatic turret digital Vickers hardness tester

Short Description:

Send email to us

Product Detail

Product Tags

I、 Product Description:

TMHV-MDX automatic turret digital touchscreen Vickers hardness tester is a model:

l Multiple test force Settings, force values to choose from

l Automatic turret

l Hardness values are displayed automatically

l 8-inch touchscreen interface for easy operation

II、 Main Features

Multiple test forces, meeting all test forces within the range specified in the standard.
8-inch touchscreen interface for easy user operation.
The rotary tower is equipped with two different magnification objectives, 10X and 20X (5X and 40X are optional), allowing for extensive sample profile scanning at low magnification as needed.
Both 10X and 20X (5X, 40X) different magnification objectives can be measured, 40X(optional).
During the test, the indenter and the objective automatically switch to each other, and the test point is automatically positioned precisely.
Calibration can be carried out according to standard hardness blocks or length scales, and hardness correction is automatically made according to high, medium and low hardness values, making hardness values more accurate.
The various hardness values can be converted to each other.
All test parameters and results are saved in excel format on a USB flash drive, facilitating data processing and output of inspection reports.
Test setting parameters are password-protected.
The light source uses LED lights, which have a long lifespan and do not require bulb replacement.
Built-in camera for clearer images (optional).
Multiple languages are available, including Chinese and English.
Equipped with RS-232 interface, it can be connected to a computer (optional).

Technical parameters:

Model	TMHV-5MDX	TMHV-10MDX	TMHV-30MDX	TMHV-50MDX
Test force	0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N) (0.2Kgf is optional)	0.3Kgf (2.94N), 0.5Kgf (4.90N), 1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N)	0.5Kgf (4.90N), 1.0 Kgf (9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 15.0Kgf(147N), 20.0Kgf(196N), 30.0Kgf(294N) 0.3Kgf (optional)	1.0 Kgf(9.8N), 2.0Kgf(19.6N), 2.5Kgf(24.5N), 3.0Kgf(29.4N), 5.0Kgf(49.0N), 10.0Kgf(98.0N), 15.0Kgf(147N), 20.0Kgf(196N), 30.0 Kgf(294N), 40.0Kgf(392N), 50.0Kgf(490N)(0.5Kgf is optional)
enforce standards	GBT4340.1, GBT4340.2, ASTM_E92
Hardness value conversion	According to GB1172-99 and ASTM standards
Accuracy complies	JJG260-91, JIS B 7725, JIS B 7734, GB/ T3430.2-99ASTM E-384, ISO 6507-2, ISO4546
Loading method	Auto-load/hold/unload
Rotate the tower mechanism	Automatic, manual.Objective – indenter – objective auto-switch rotation.The automatic turret provides a quick and straightforward sequence of operations without the need to manually rotate the turret for automatic switching of the objective head. The center of the objective lens coincides with the center of the indenter with high precision with an error of less than 1 micron, ensuring accurate sample pressure positioning and adjustable center position of the objective lens.
Minimum test unit	0.01 mu m
Data output	The LCD display reads out and saves directly to a USB drive in EXCEL format
Convert the ruler	HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Hardness test range	8~2900HV
Test the force application method	Automatic (loading, holding, unloading)
Measuring eyepiece	Electronic 10x (15X optional)
Objective lens	× 10x, × 20x (5X, 40X optional)
Total magnification	100X, 200X (50X, 400X optional)
Test force holding time	1~99s
Maximum allowable specimen height	180mm
Distance from the center of the indenter to the outer wall	160mm
Size	580190700mm
Weight	About 55Kg
Power supply	AC220V+5%, 50-60Hz

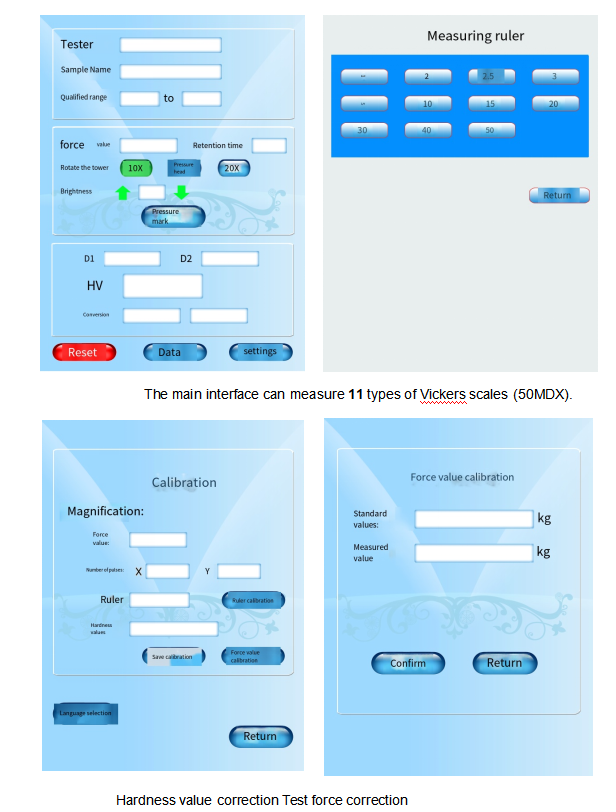

Operation interface:

Standard attachment:

Name	Quantity	Name	Quantity
DHV-1000-10X micrometer eyepiece	1	Large, medium, V-shaped test bench	1 each
Vickers hardness blocks	2 pieces	Spare fuse (2A)	2 pieces
Power cord	1 wire	Dust bag	1
Usb flash drive	1	Stylus	1
Hex socket wrench (2.5mm)	1	Adjust the feet horizontally	4.
Product qualification certificate, warranty card	1 copy	Instruction Manual	1 copy
