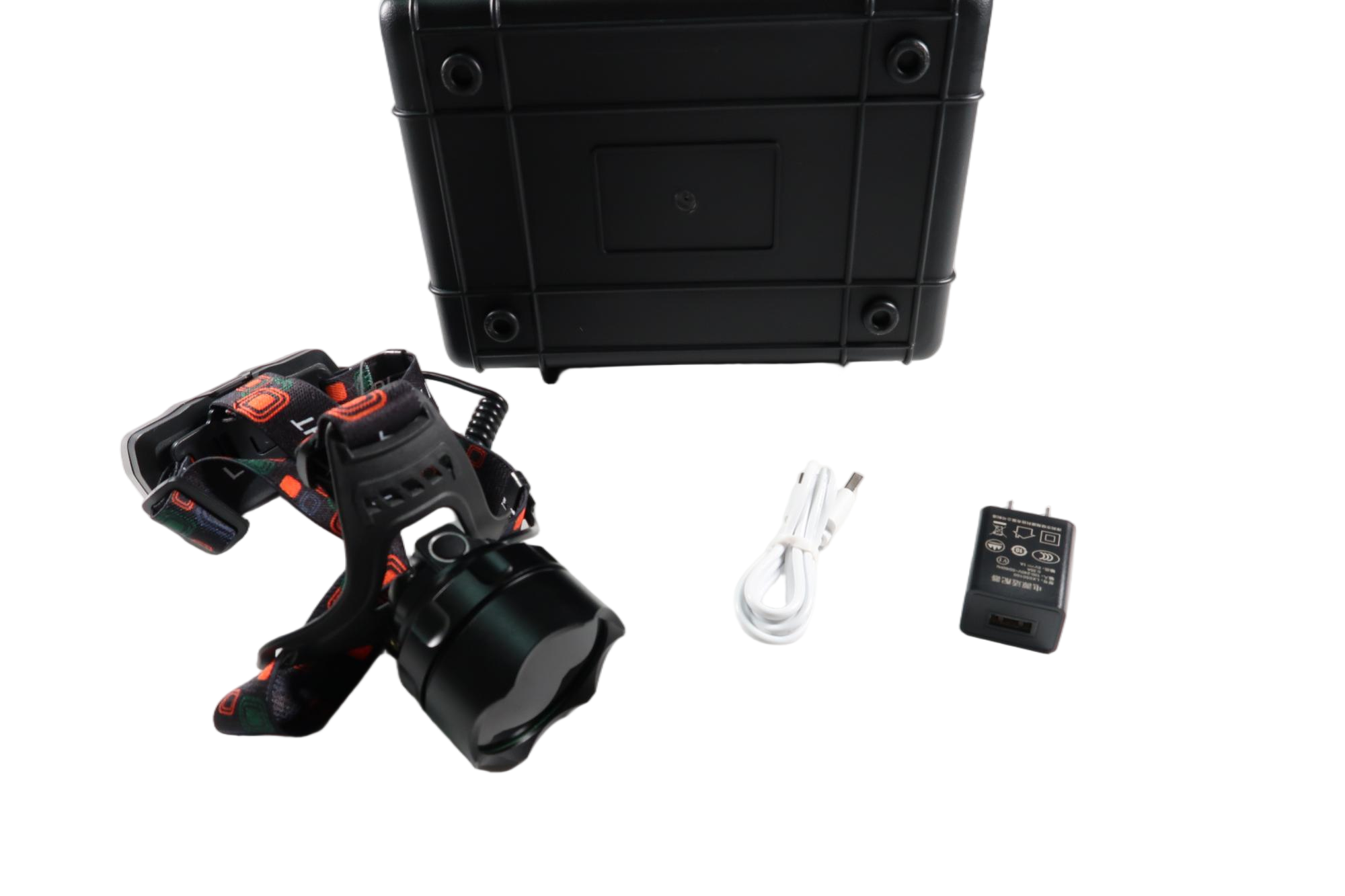

UV LED Inspection Headlight TMUV40TB & TMUV100TB
Designed to release the test engineers’ hands.
TMTECK headlights are small-sized, lightweight and designed to release the test engineer’s hands during inspection. It is compliant with ASTM UV-A intensity and wavelength specifications for LPT and MPT. It is widely used in nondestructive testing (NDT), forensic inspection, quality control, fluorescent leak detection, industrial inspection, and so on.
Features
TMUV40TB: 1.5 in (4cm) diameter coverage area at 15 inches (38cm), with a max UV
intensity of 40,000μW/cm² and min UV intensity of 10,000μW/cm².
TMUV100TB: 4 in (10cm) diameter coverage area at 15 inches (38cm), with a max UV
intensity of 15,000μW/cm² and min UV intensity of 1,000μW/cm².
Instant-on operation; lamp reaches full intensity immediately!
Every lamp is mounted with an antioxidant black light filter glass.
The headlights can be adjusted in different angles.
It is small size, light weight and cordless. Use it anywhere.

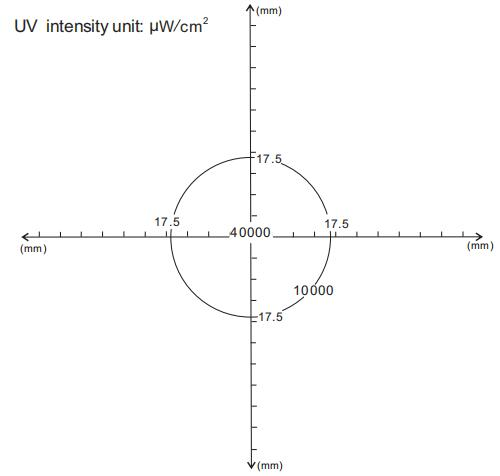

TMUV40TB UV Light Beam Distribution at 15 inches (38cm)
Measured By: SpectrolineRAccuPRO™ XP-2000 radiometer

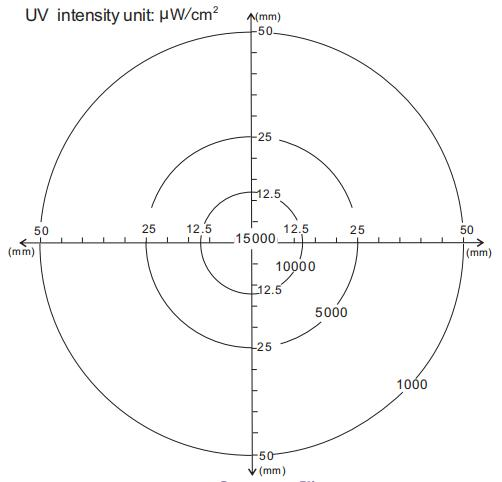

TMUV100TB UV Light Beam Distribution at 15 inches (38cm)
Measured By: SpectrolineRAccuPRO™ XP-2000 radiometer
Specifications
| Model No. | TMUV40TB | TMUV100TB |
| UV Intensity at 15 in (38cm) | 40,000 µW/cm²(max) | 15,000 µW/cm²(max) |
| UV-A Coverage Area at 15 in(38cm) | 1.5 in (4 cm) Diameter(min 10,000µW/cm²) | 4 in (10 cm) Diameter(min 1,000µW/cm²) |
| Visible Light | 1.2 foot-candles (13 lux) | 0.4 foot-candles (4.3 lux) |
| Lamp Style | Headlight | |
| Light Source | 1 UV LED | |
| Wavelength | 365±5nm | |
| Filter Glass | Built-in Antioxidant Blak Light Filters | |
| IP Grade | IP65 (Dust and Water Jetting Proof) | |
| Power Consumption | <3W | |
| Power Supply | One Rechargeable 3.7V 3000mAh Li-ion Battery | |
| Running Time | Approximately 5 hours | |
| Charge Time | Approximately 4 hours | |
| Battery Charger | AC 100-240V; DC output 4.2V 1A | |
| Lamp Head Diameter | 48mm | |
| Lamp Length | 59mm | |
| Weight (With Battery) | 238g | |
