TM8886 Glossmeter
Brief Introduction
The technology parameter of TM8886 Glossmeter is complete according with state standard GB9754-88、GB9966.5 and international standard ISO2813, all items of the performance meet the first class work requirements of state JJG696-2002 (Lens Luster Degree Instrument Measure Test Regulations) .
Applications
The surface luster measure for printing ink, paint, bake lacquer, coating and woodwork
The surface luster measure for construction decoration materials: marble; granite; glass chemical polishing brick and pottery brick
The surface luster measure for plastic and sheet
The surface luster measure for other non-metal materials
Instrument Characteristics
Fine, light stylish appearance, easy to carry
Completely intelligentized design, single key operation, convenient to use
Automatic adjustment, no need to be hand adjustment
Long life-span lamp- house, no need to change
Precise measure, excellent repetition performance
LCD digital display, with backlight, accurately display the remainder of the battery
There is buzz sound during operation
Turn off automatically
USB interface, can save 1245 datas and can check the time
Measuring time tracking
Technical Parameters
|
Model |
TM8886 |
|
Measuring Range |
0~1000Gu |
|
Stability |
<0.45Gu(0~99.9Gu), 0.5%(100~1000Gu) |
|
Value error |
<1Gu(0~99.9Gu), 1%(100~1000Gu) |
|
Projecting angle |
60° |
|
The Measuring window size |
ф4.5mm |
|
Power |
3V(1.5(AAA)*2) |
|
Working Temperature: |
4-40℃ |
|
Working humidity: |
<85% without condensed dew |
|
Dimension |
115*65*25(mm) |
|
Weight |
100g |
|
Measuring time tracking |
Yes |
|
Memory |
Yes |
|
Communication |
USB interface |
|
Color |
Black |
|
Display instructions |
“GU”— luster unit “calibrate”—calibration “clear save”—clear the save datas. Change Ca”l— Modify the calibration value ”Set time”—Modify the time |
|

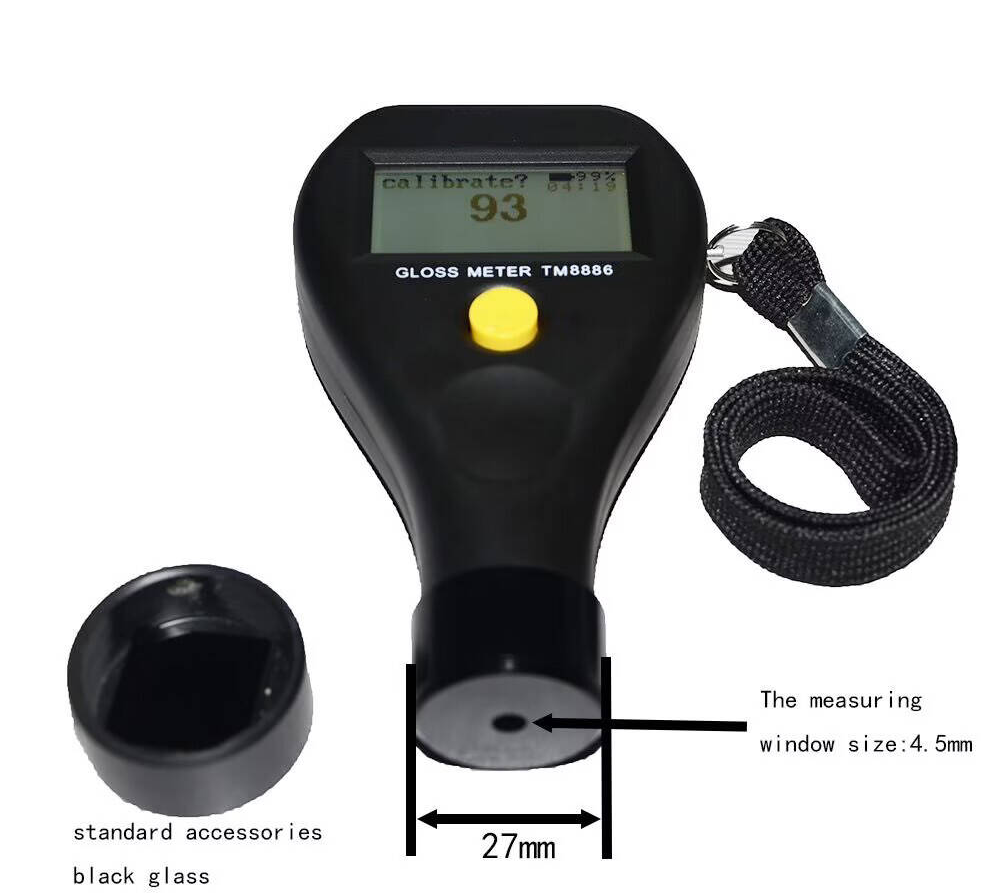

Note:The measurement aperture is 4.5 mm, and the measured area must be larger than 4.5 mm. |
|
