Manufacturer for Ultrasonic Flaw Detector For Sale - TFD320 Ultrasonic Flaw Detector Like Olympus Flaw Detector Dac Avg B Scan Dual 4a – TMTeck Detail:
DAC AVG & B scan Dual 4A Ultrasonic Flaw Detector TFD320 for Gate and DAC alarm& 5 MINUTES VIDEO
Product Info:
• Automated calibration Automated gain
• Automated make video of test process and play
• DAC AVG & B scan, AWS function, 6dB DAC
• High-speed capture and very low noise
• Solid metal housing (IP65)
• High contrast viewing of the waveform from bright
• Powerful pc software and reports can be export to excel through RS232/ USB interface
Features :
• Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz dB, ф)
• Automated switch three staff gauge ((Depth d, level p, distance s)
• Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
• Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compen-sated
• 100 independence setup, any criterion can be input freely, we can work in the scene without test block
• Big memory of 300 A graph and 30000 thickness value
• Automated gain and gain scan
• Automated make video of test process and play
• Peak Hold and Peak Memory
• B scan
• Powerful pc software and reports can be export to excel
• The embeded software can be online updated
• Li battery, continue working time up to 10 hours
Other Assistant Function :
• Display freeze;
• Automated echo degree;
• Angles and K-value;
• Lock and unlock function of system parameters;
• Dormancy and screen savers;
• Electronic clock calendar ;
• Two gates setting and alarm indication;
• Gate and DAC alarm;
Title |
Parameter |
Title |
Parameter |
Measuring Range(mm) | 2.5 ~ 10000 | Measurement Mode | Single, Dual, Thru |
Vertical Linearity Error | ≤3% | Reject | 0~80% |
Horizontal Linearity Error | ≤0.1% | Pulse Displacement(μs) | -20 ~ +3400 |
Sensitivity Leavings | ≥62dB | Zero(μs) | 0.0 ~ 99.99 |
Dynamic range | ≥34dB | Port Type | BNC |
Resolving Power | ≥36dB | Operating Temperature (℃) | -20~50 |
Frequency Range(MHz) | 0.5 ~ 20 | H×W×D(mm) | 210×156×40 |
Gain(dB) | 0 ~ 110 | Weight(kg) | 1.0 |
Material Velocity(m/s) | 1000 ~ 13000 |

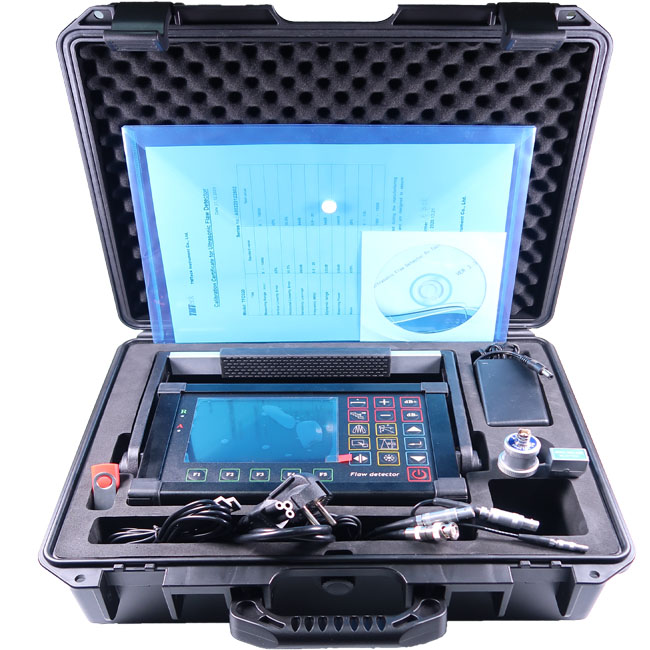

TFD320 Standard Configuration
No. | Item | Quantity |
1 | Main Body TFD320 | 1 |
2 | Straight Beam Probe | 1 |
3 | Angle Probe | 1 |
4 | Machine-probe Cable | 2 |

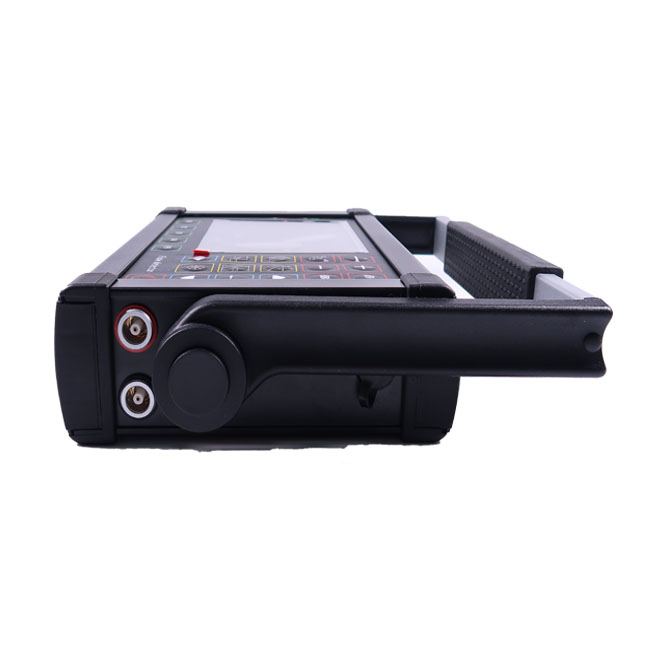

Product detail pictures:
