HRSS-150AT Automatic Full Scale Digital Rockwell Hardness Tester
Range of application：
Rockwell:Suitable for precision testing on parallel planes.V-shaped test bench allows for precise testing of cylinders.Test ferrous metal, non-ferrous metal, non-metallic materials, suitable for quenching, tempering and other heat treatment.
Superficial Rockwell：Test ferrous metal, alloy steel, hard alloy and metal surface treatment (carburizing, nitriding, electroplating).
Plastic Rockwell：Rockwell hardness of plastics, composites and various friction materials, soft metals and non-metallic soft materials. (Optional)
Product Introduction：
HRSS-150AT The automatic Rockwell hardness tester conforms to ASTM E18 Rockwell hardness test method for metal materials, and has the characteristics of high automation, high test accuracy and high test efficiency.

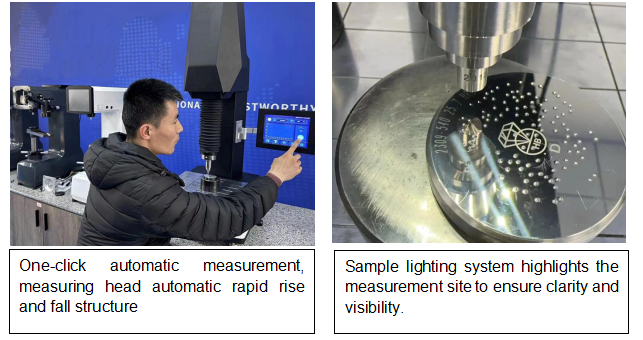

- One click operation, get the test results.
- Cantilever structure indenter automatically rises and falls, fully automatic hardness measurement .
- Equipped with a joystick, the servo motor can be quickly driven to adjust the test space and improve the detection efficiency.

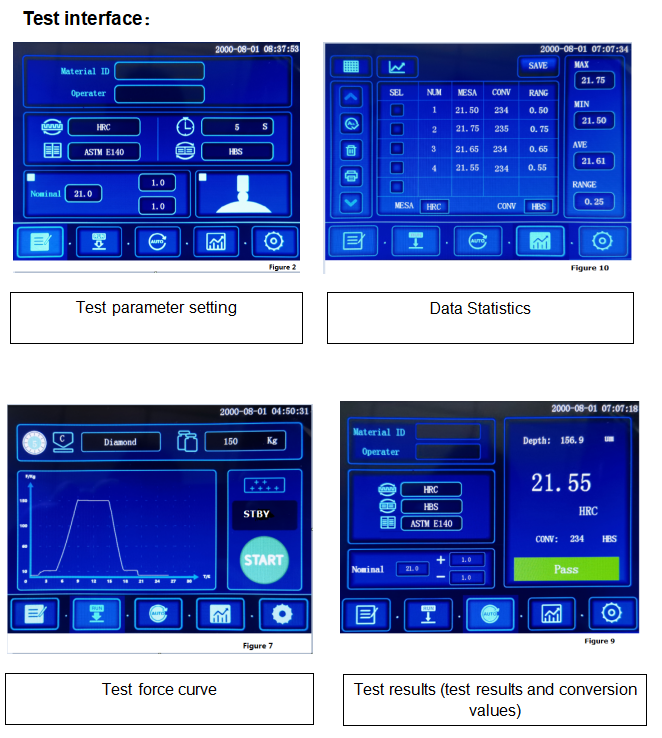

- Touch screen display and operation, equipped with dynamic curves, real-time monitoring of the force value sensor and displacement sensor operating status, very intuitive.

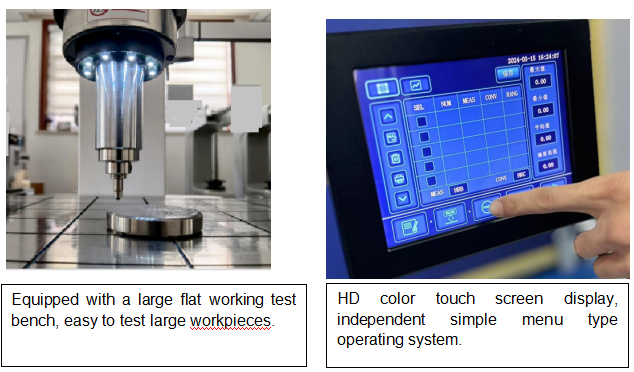

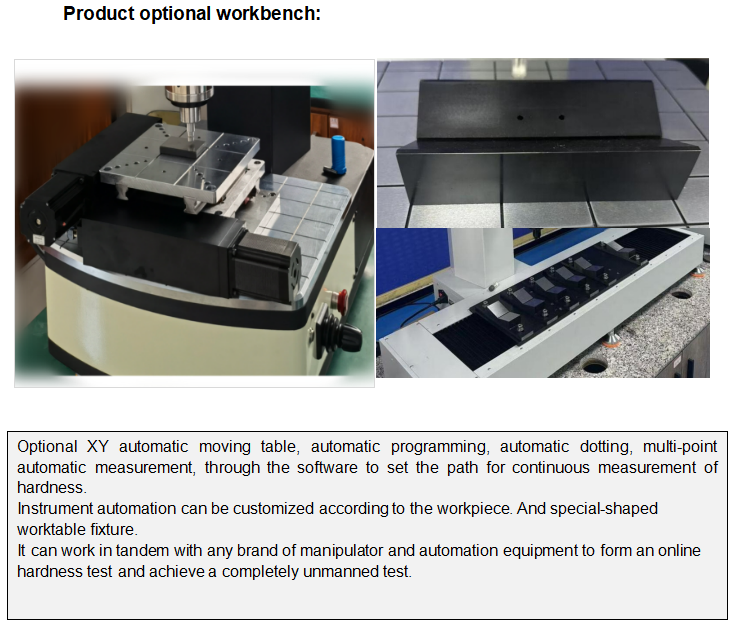

- Large flat test bench is convenient for testing large workpieces, and can work in tandem with any brand of manipulator and automation equipment to form online hardness testing, and achieve completely unmanned testing.
- USB, Bluetooth or RS232 and other transmission methods are transmitted to the computer side, and special hardness management software is connected for data management.
Main Accessories:
| Main unit | 1 set | Hardness Block HRA | 1 pc |
| Small flat anvil | 1 pc | Hardness Block HRC | 3 pcs |
| V-notch anvil | 1 pc | Hardness Block HRB | 1 pc |
| Diamond cone penetrator | 1 pc | Micro printer | 1 pc |
| Steel ball penetrator φ1.588mm | 1 pc | Fuse: 2A | 2 pcs |
| Superficial Rockwell Hardness Blocks | 2 pcs | Anti-dust cover | 1 pc |
| Spanner | 1 pc | Horizontal Regulating Screw | 4 pcs |
| Operation manual | 1 pc | ||
Technical Parameters
|
Test Force |
Rockwell：60kg,100kg,150kg | |
| Superficial Rockwell：15kg,30kg,45kg | ||
|
Accuracy |
±1% | |
|
Measuring range |
Rockwell：20-95HRA,10-100HRB,10-70HRC
Superficial Rockwell：70-94HR15N,42-86HR30N,20-77HR45N, 67-93HR15T, 29-82HR30T,10-72HR45T |
|
|
Indenter |
Rockwell diamond indenter | ф1.588mm steel ball indenter |
|
Test Space |
Max. height of test piece：300mm(can be customized) | |
| Depth of throat: 200mm (can be customized) | ||
|
Dwell Time |
Initial test force:0.1-50s Total test force:0.1-50s | |
|
Operating Mode |
Automatic head rise, return position can be set, one key to complete | |
|
Display |
8 inch HD touch screen, menu selection, hardness value display, parameter setting, data statistics, storage, etc | |
|
Resolution |
0.01HR | |
|
Hardness Scale |
HRA,HRD,HRC,HRF,HRB,HRG,HRH,HRE,HRK,HRL, HRM,HRP,HRR,
HRS,HRV,HR15N,HR30N,HR45N, HR15T,HR30T,HR45T,HR15W, HR30W,HR45W,HR15X, HR30X,HR45X,HR15Y,HR30Y,HR45Y |
|
|
Conversion Scale |
ASTM E140 standard for multiple material correspondence | |
|
Data Statistics |
Test times, average value, maximum value, minimum value, repeatability,setting upper and lower limits of hardness value, warning function,etc | |
|
Data Output |
USB Interface,RS232 Interface | |
|
Power Supply |
220V/110V,50Hz/60Hz | |
|
Executive Standard |
ISO6508,ASTME18,JISZ2245,GB/T230.2 | |
