Film Magnetic Coating Thickness Gauge / Cross Hatch Cutter TMTECK-120 series
Introduction:
This instrument is widely used to evaluate the adhesion of various coatings .A high precise machined wheel presenting 6 or T11 cutting blades with various spacing is mounted in a handle. The test is carried out by performing 2 series of crossed cuts at right angle. The obtained lattices is either brushed or cleared with adhesion tape. According to the coatings thickness and the related spacing, the results can be classified with reference to a standard scale. It has long life tool with 8 cutting edges and comfortable wood handle. When applied to multi-coat system, assessment of the resistance to separation of individual layers of the coating from each other may be made.
TMTECK-120 Cross Hatch Cutter is designed and manufactured according to ISO 2409-1992, GB/T9286-98, BS 3900 E6 and ASTM D3359 standards

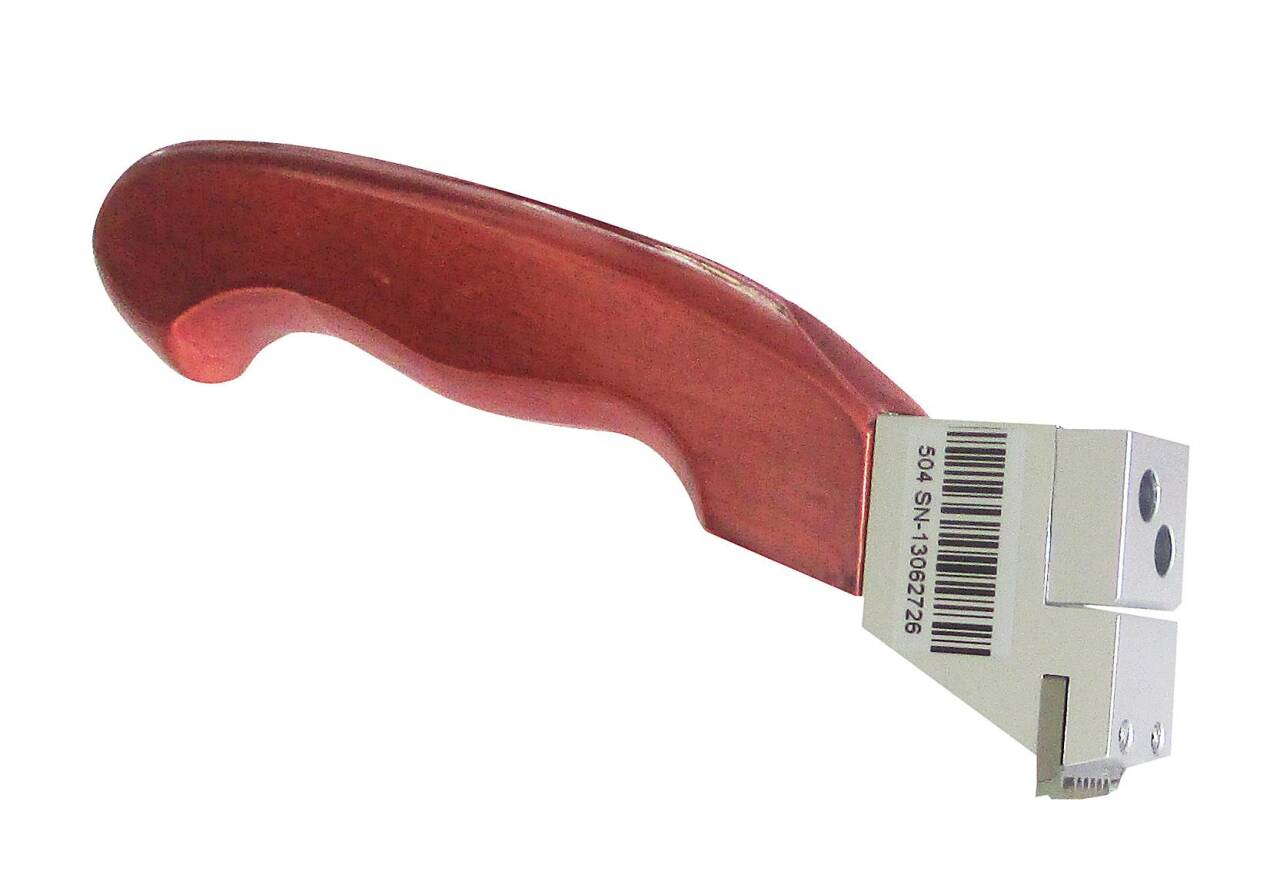

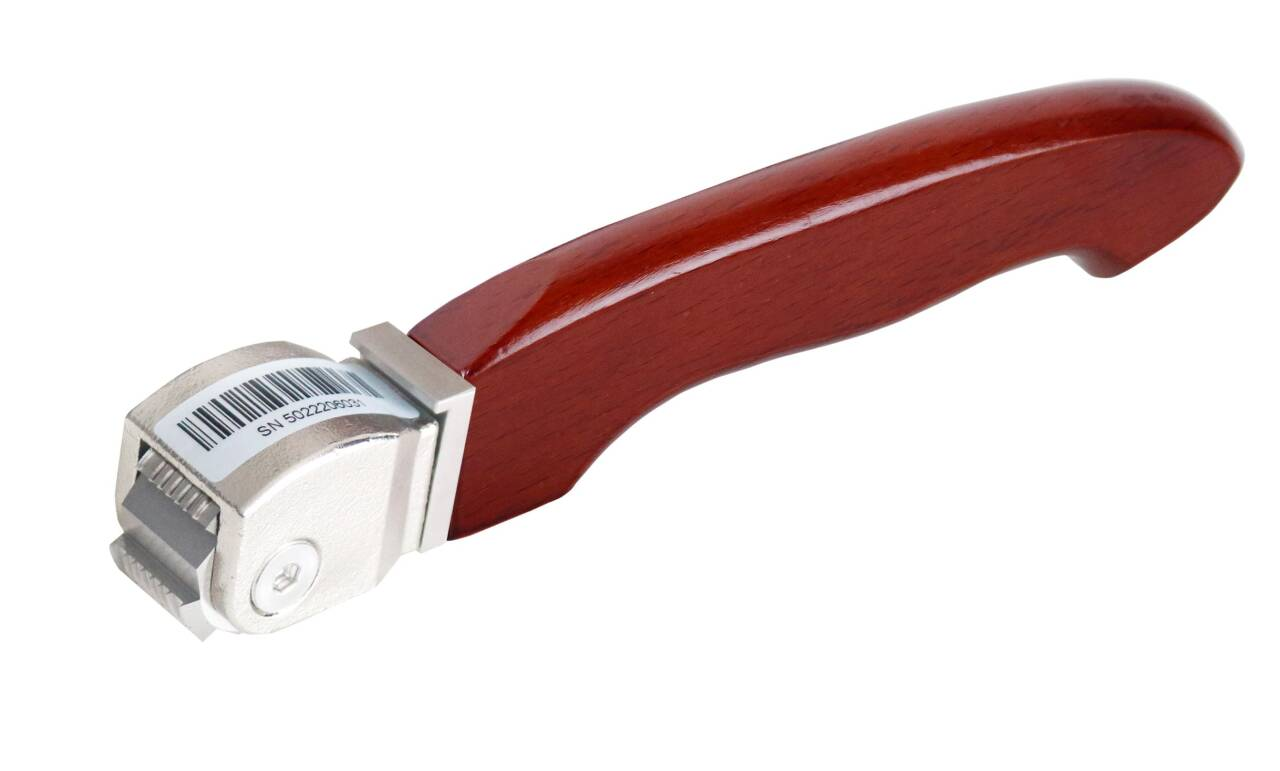

| Singlee Cutting edges | Multi Cutting edges |
 |
 |
Technical Specification:
Single Cutting edges
|
Order model |
No. Of Teeth |
No. Of Cutting Edges |
Cutter Spacing |
|
TMTECK-120/2 |
11 |
1 |
1mm |
|
TMTECK-120/3 |
6 |
1 |
1mm |
|
TMTECK-120/4 |
11 |
1 |
2mm |
|
TMTECK-120/5 |
6 |
1 |
2mm |
|
TMTECK-120/6 |
6 |
1 |
3mm |
Multi Cutting edges
|
Order model |
No. Of Teeth |
No. Of Cutting Edges |
Cutter Spacing |
|
TMTECK-120/20 |
11 |
8 |
1mm |
|
TMTECK-120/30 |
6 |
8 |
1mm |
|
TMTECK-120/40 |
11 |
8 |
2mm |
|
TMTECK-120/50 |
6 |
8 |
2mm |
|
TMTECK-120/60 |
6 |
8 |
3mm |
1mm cutting space: suitable for hard substrates (metal) with a paint film thickness of less than 60 μm
2mm cutting space: suitable for hard substrates with a paint film thickness of 61 to 120 μm or soft substrates (wood, plastic) with a paint film thickness of less than 120 μm.
3mm cutting space: suitable for hard or soft substrates with a paint film thickness of 121 to 250 μm.
Order Information:
|
Standard Kit |
Contain |
|
TMTECK-120
|
Cross Hatch Cutter&Handle |
