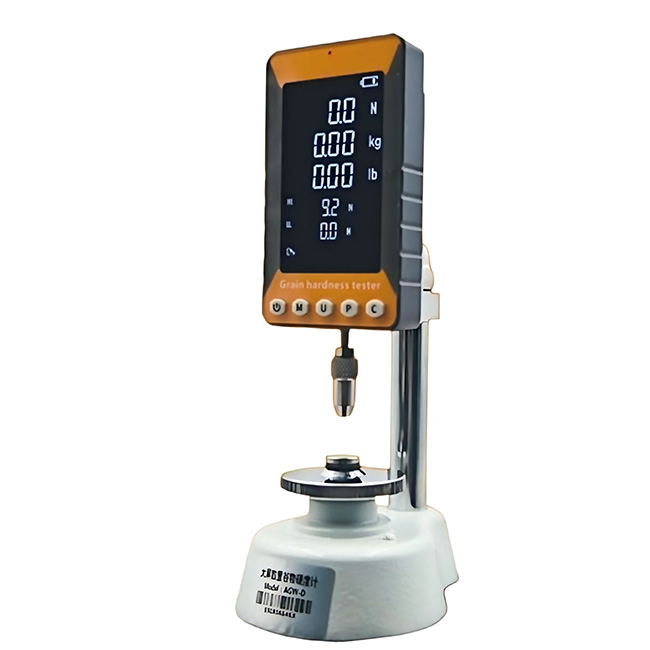

Digital Grain Hardness Tester
Functional Characteristics
1. Digital display for easy reading with high accuracy.
2. Lightweight and compact design for convenient portability.
3. Simultaneous display in three units: Kg, N, and lb.
4. The battery is equipped with short circuit, leakage, and overload protection. It includes a low battery warning and is powered by a 3.7V lithium battery. The device will automatically shut down after ten minutes of inactivity.
5. Data synchronization function: The instrument can be connected to a computer via a data cable for data synchronization testing. Data can also be exported and analyzed within the software.
6. The battery is equipped with short circuit, leakage, and overload protection. It includes a low battery warning and is powered by a 3.7V lithium battery. The device will automatically shut down after ten minutes of inactivity.
Technical Specifications
|
Model Specifications |
20Kg |
|
Maximum Load Value |
20kg |
|
196N |
|
|
Load Scale Division |
0.01kg |
|
0.1N |
|
|
0.01Lb |
|
|
Accuracy |
±0.5% (10% to 100% of Full scale) |
|
Power Supply |
3.7 V lithium battery |
|
Operating Temperature |
5℃～35℃ |
|
Transport Temperature |
-10℃～60℃ |
|
Relative Humidity |
15％～80％RH |
|
Operating Environment |
No vibration sources or corrosive agents in the vicinity |
Packing List
|
Main Unit |
1 unit |
|
User Manual |
1 copy |
|
Certificate of Quality |
1 sheet |
|
Inspection Certificate |
1 copy |
|
Desiccant |
1 copy |
|
Height Adjustment Stand A/B |
1 each |
